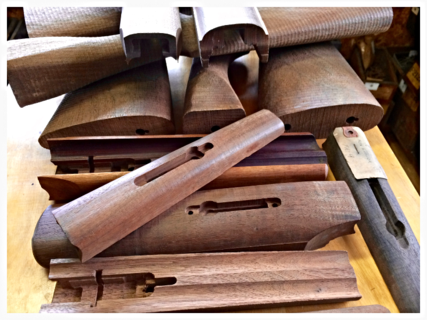

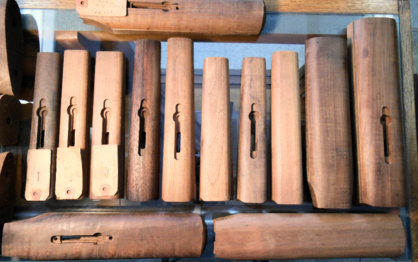

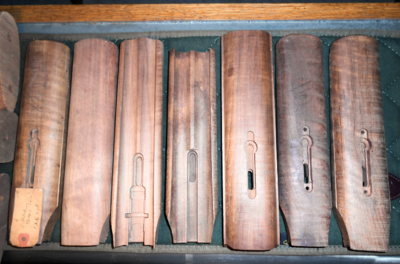

- FOREND WOOD - Have hundreds of many styles of Factory Semi-Inlet, Shaped and Non-Finished Forends: Splinter and Beavertail, Extractor and Ejector Style, Graded and Sterlingworth, as well as SP Models. Lengths are: 8 ¼,” - 10 ½.” This wood is American Black Walnut, mostly Field Grade, in fine shape as turned by the factory decades ago. The factory inletting is very clean and precise.
Prices are $75 for Splinter and Beavertail.
ALSO AVAILABLE, complete parts kits for nearly all forends, wood & metal.
- ORIGINAL A.H. FOX SHOTGUN STOCKS AND FORENDS -
ALL BUTTSTOCKS ARE CURRENTLY SOLD OUT.
ORIGINAL FORENDS ARE STILL IN GOOD SUPPLY, SEE DETAILS BELOW.

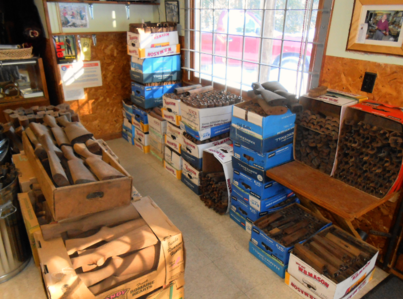

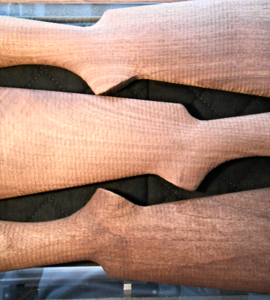

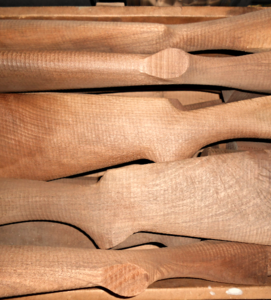

- BUTTSTOCKS - Currently Sold Out: Had nearly 150 shaped and turned pistol grip American Black Walnut Buttstocks Blanks with no inletting (were available as semi-inlet, below) - see photographs. Like the Forends, this wood also is many decades old, and these stocks are strong, dry, and will work well for any Boxlock or Sidelock shotgun and can be shaped to straight grip if desired. Straight grained Field Grade, these stocks are unique pieces of American Gunmaking history.

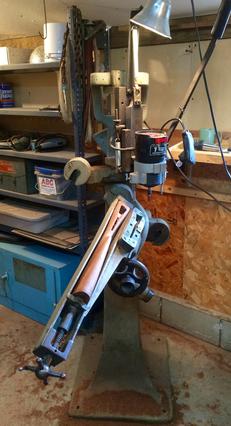

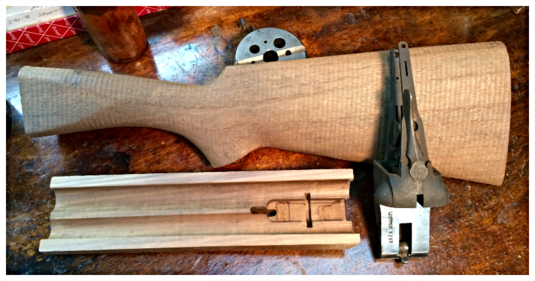

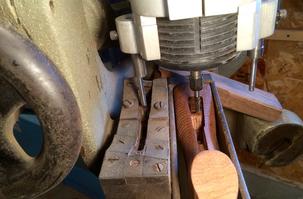

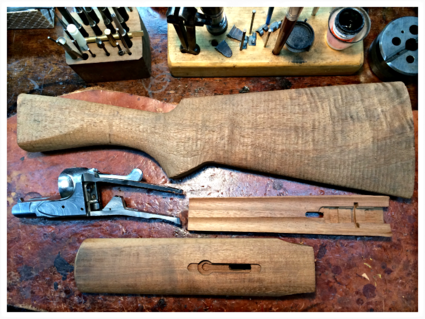

I was able to acquire Mitzie's old original A.H. Fox inletting machine. After setup and re-tooling with modern cutters and styluses, the stocks above can be cleanly semi-inlet on the tight/small end of the spectrum to accommodate any Graded or Sterlingworth A.H. Fox receiver. As an aside, all gauges of the Fox receivers and trigger plate dimensions pertaining to stock inletting dimensions are essentially the same with variations in width averaging .010" - .020" per side, or 1/32"+- overall.

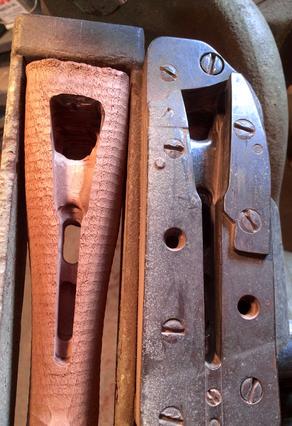

This is not minimal tolerance inletting from a duplicating machine using a per-gun pattern; it is general A.H. Fox inletting from the old steel templates used to get you in the ballpark for any Fox receiver; this will be snug for most guns and leaves enough wood for quality work.
NOTE: If/When a FOX is being RESTOCKED it wise to replace the top tang screw and the trigger guard screw for a proper job, as the two original screws from your gun will not fit a new stock exactly the same as on the original buttstock; the timing, length and angles are never precisely the same on a new stock as compared to the original stock. If you are restocking your Fox, these two new Factory original screws can be properly fit to your gun and purchased with shipping for $37.
